Reliable transmission of TCP messages

TCP uses sequence numbers with acknowledgements to increase the reliability of messages. If a message was corrupted or not received it will resend that segment.

Automatic Repeat Request (ARQ)

Automatic Repeat Request (ARQ)

This is the way TCP makes messaging reliable. This uses a combination message acknowledgements and message timeouts to determine if it needs to resend a segment. The timeout is a length of time before it reseeds the message. This will need to be fine tuned by guessing the Round trip time (RTT).

Link to original

The most basic implementation of ARQ stops and waits to check if the message was received.

Stop and wait ARQ

Stop and wait ARQ

This is an implementation of ARQ that sends some messages and wait for an acknowledgement before sending more. It uses a window size determined by the Transmission control in TCP. It will only send the window size worth of unacknowledged message before stopping to wait for a new acknowledgement message or the timeout window to be exceeded.

Link to original

In TCP the acknowledgement header is set to be the next sequence number the receiver is waiting to get. There are different ways you can handle unacknowledged messages.

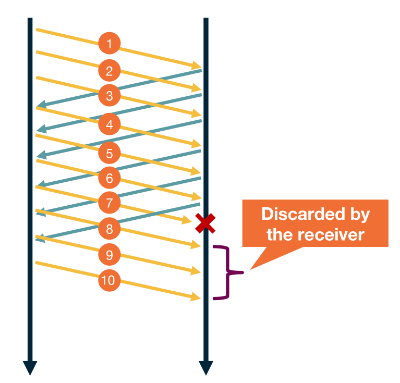

Go back N

Go back N

This is a method of handling unacknowledged messages. When a sequence number is either skipped or timed out the send starts re-sending segments from the missing number.

Link to original

Fast retransmit

Fast retransmit

This is a method of handling unacknowledged messages. The keeps sending packages until it sees a package hasn’t be acknowledged 3 times. Then it restransmits that message before the timeout.

Link to original
