Internet protocol stack hourglass shape

Internet protocol stack hourglass shape

May 23, 20241 min read

  • networks

Internet protocol stack hourglass shape

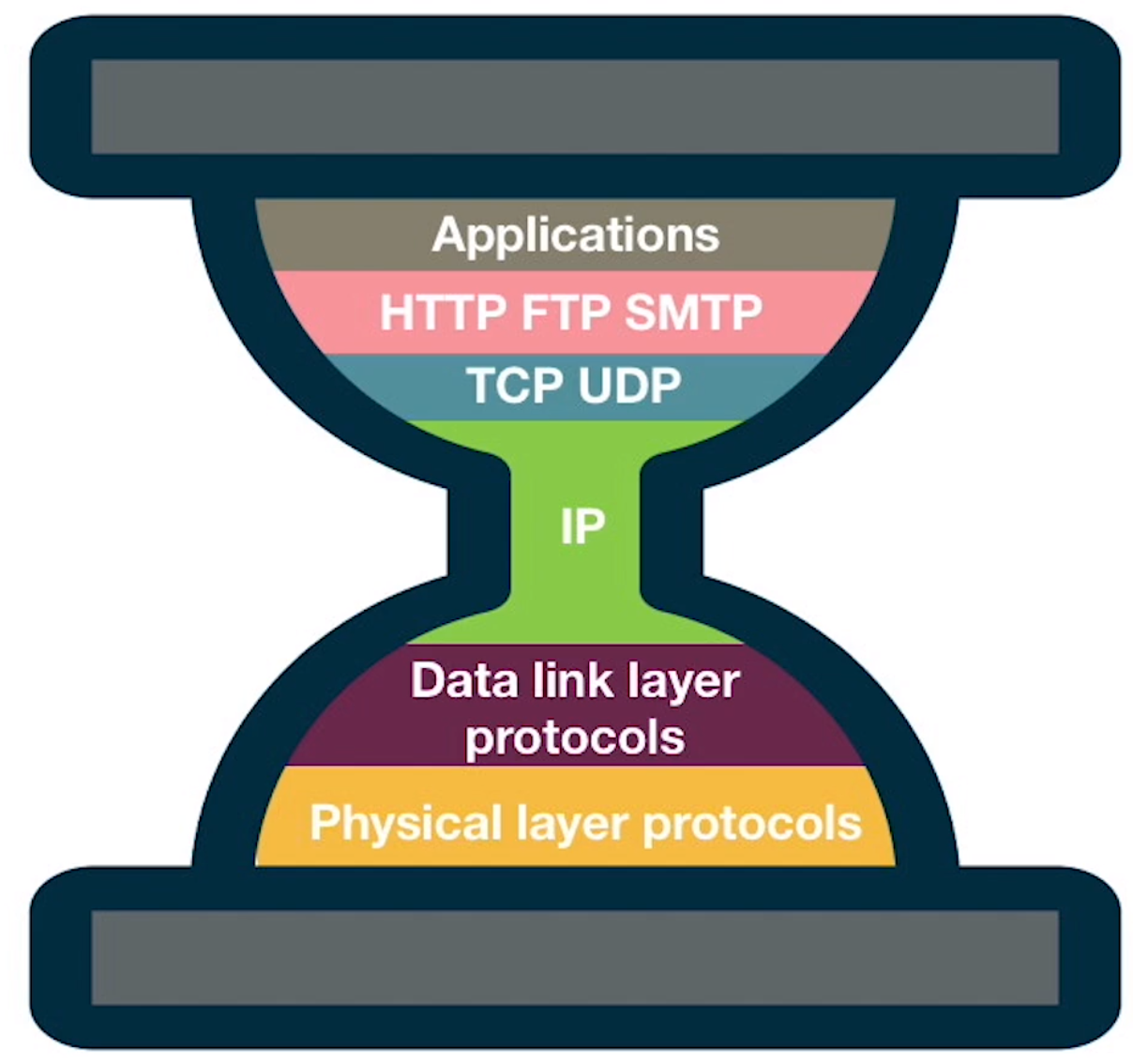

When you look at the number of protocols at each layer of the OSI model you notice that there is an hour glass shape. With layer 7 and layer 1 having a variety of protocols in them buts layer 3 only using a single protocol the Internet Protocol (IP). layer 4 is dominated by UDP and TCP.
